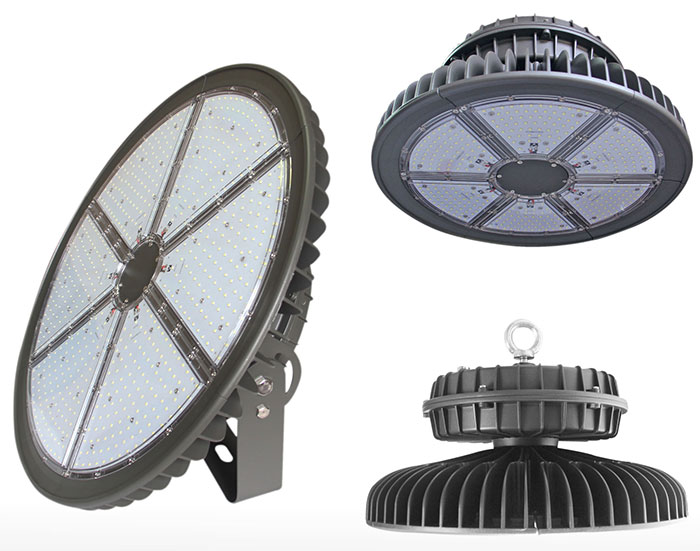

UL High Bay lighting

AHBL1


. Die-cast housing, durable powder coat finish
. Phili Lumileds LED's technology
. Installation Type: U-Bracket for Fixed or hool for suspension
. Hands-Free Mounting
. 120-277V Photocell as option
. 10KA Surge Protector as option
. Dimmable driver as option


Order Number AHBL1-100W AHBL1-200W AHBL2-300W AHBL2-400W AHBL2-500W
LED Engine PHILIPS LUMILEDS PHILIPS LUMILEDS PHILIPS LUMILEDS PHILIPS LUMILEDS PHILIPS LUMILEDS
Deliered Lumens(lm) 13,000 26,000 39,000 52,000 65,000
Efficacy(lm/w) 130 130 130 130 130
CCT 5000K(4000K Option)
Beam Angle 60°or 120°
CRI 70(80 As Option)
Base/Mount U-BRACKET OR HOOK
Input/Voltage(V) 120-277Vac / 347-480Vac
Power Factor >0.9
Operating Temperature -30°F to 104°F
Certification UL,CUL,DLC,LM-79,Lighting Facts
Environment Wet Lo cation
Warranty 5years
Product Size Φ380x230mm Φ600x230mm
