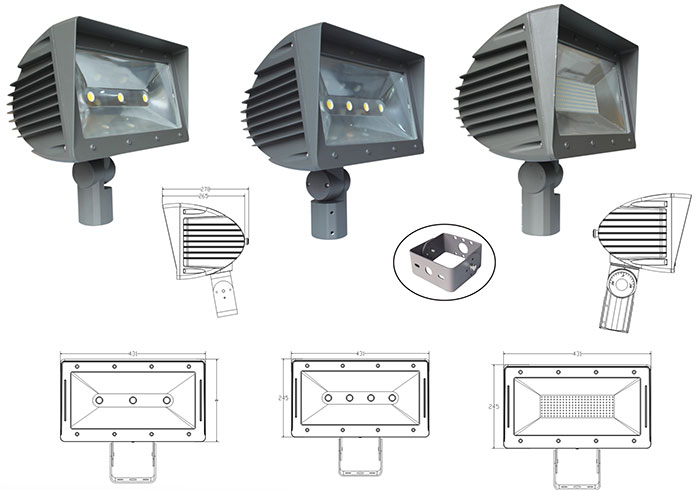

AFLN153
. Die cast aluminum body with integrated heat sinking to
maximize performance and long fixtuer life.
. The Architectural Flood family of fixture combines
performance and design in a value package
. Available in 3 sizes wattage of this flood family ranges
from 20W to 153W
. Typical applications include general area lighting,facade,
landscape as well as signage or displays.
. Wall & Base Mount (Yoke Mount or Knuckle Bracket)
. 120-277V Photocell as option
. 10KA Surge Protecdtor as option
. Dimmable driver as option
| Order Number | AFLN151-020W | AFLN153-150W | AFLN151-040W |
| LED Engine | CITIZEN COB | CITIZEN COB | PHILIPS LUMILEDS |
| Deliered Lumens(lm) | 13,200 | 16,500 | 18,360 |
| Efficacy(lm/w) | 110 | 110 | 120 |
| CCT | 5000K(4000K Option) | ||
| Beam Angle | 140° | ||
| CRI | 70(80 As Option) | ||
| Base/Mount | Wall & Base Mount | ||
| Input/Voltage(V) | 120-277Vac / 347-480Vac | ||
| Power Factor | >0.9 | ||
| Operating Temperature | -30°F to 104°F | ||
| Certification | UL,CUL,DLC,LM-79,Lighting Facts | ||
| Environment | Wet Lo cation | ||
| Warranty | 5years | ||
